For our CubeSat launches we can make use of a family of deployers available in sizes from 1U up to 16U, including XL variants, as well as customized solutions for non-CubeSat customers. Our CubeSat deployer line has flight heritage on many different vehicles including PSLV, Dnepr, Antares, Soyuz, Vega, LM-11, LM-2D, and Falcon 9. In addition to our deployers, we have experience working with third party deployers as well.
Deployers
FLIGHT PROVEN SYSTEMS

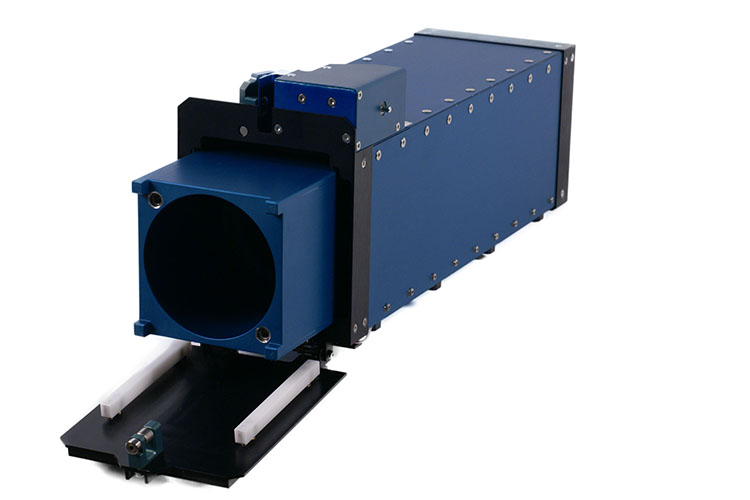

ISIPOD
1U to 3U CubeSat Deployer
Flight heritage since 2013
Deployer mass: 1.5 – 2kg
Payload mass: 2 – 6kg
Vehicles: PSLV, Antares, Soyuz, Dnepr, LM-2D, Atlas V, Vega
Duopack
1U to 6U CubeSat Deployer
Flight heritage since 2015
Deployer mass: 4 – 4.5kg
Payload mass: 12kg
Vehicles: PSLV, LM-2D, Vega

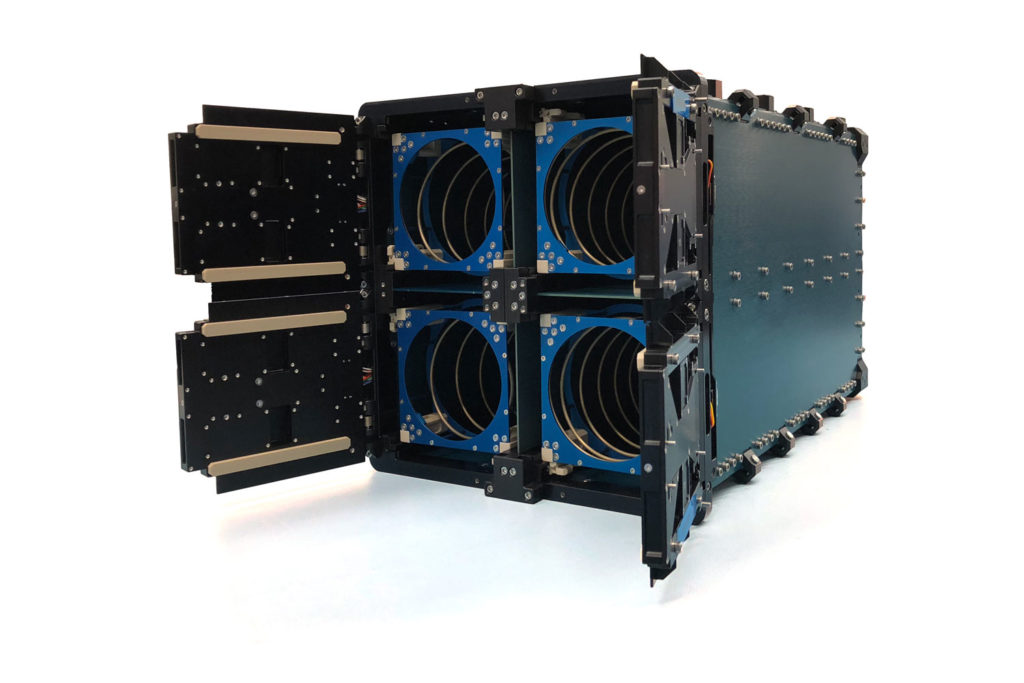

Quadpack
1U to 16U CubeSat Deployer
Flight heritage since 2014
Deployer mass: 6 – 9kg
Payload mass: 24kg
Vehicles: PSLV, Dnepr, Soyuz, Falcon-9, Vega

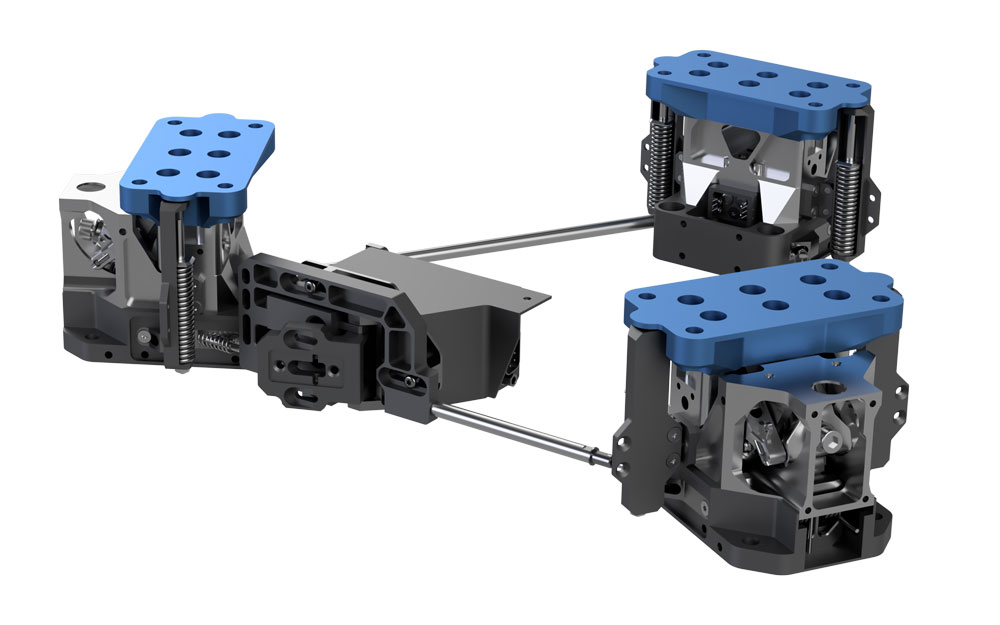

Microsatellite SEPARATION SYSTEM (M3S)
The benefit of standardization you get with CubeSats is usually not there when you move to satellites of your own design. As a result, finding the right launch adapter can be problematic and expensive. With ISISPACE as our partner, we offer to configure our M3S system to your satellite, so that you do not have to worry about it! Fully flexible, no shock and compatible with all launch vehicles, M3S is the solution for all microsat launch adapter needs. M3S can be part of our integration services, or as stand-alone product.
M3S
Microsatellite Separation System
- Flexible and versatile
- Shock-free release
- Based on heritage
- Compatible with all launch vehicles
